The Perfect Match To Your Style
Classic Look
Technical Information
9 Inches size
• Batten space : First row
5.5 cm., next row 15 cm.
• Roof slope : 30-45 degree*
• Weight 27.8 kg/sq.m
13 Inches size
• Batten space : First row
11 cm., next row 20 cm.
• Roof slope : 25-45 degree*
• Weight 27.5 kg/sq.m
StarterTile
width × length × thickness (cm)
: 60 × 29 × 0.6
Weight 2.0 kg/tile
Application amount 1.67 tile/m (eave)
StarterTile
width × length × thickness (cm)
: 80 × 40 × 0.6
Weight 3.5 kg/tile
Application amount 1.25 tile/m (eave)
MainTile
width × length × thickness (cm)
: 60 × 44 × 0.6
Weight 4.4 kg/tile
Application amount 6.25 tile/sq.m
MainTile
width × length × thickness (cm)
: 80 × 44 × 0.6
Weight 4.4 kg/tile
Application amount 6.25 tile/sq.m
13 Inches size 9 Inches size
Harmonized with large size roof panel
Establish elegance and style of building
9 Inches size
Artistic blending of classic for small size roof panel, gentleness in warmness
Coral Grey
Natural Brick
Granite Red
Marble Grey
The Perfect Fittings
Timber Look
Technical Information
Technical Information
• Batten space : First row 9 cm., next row 20 cm.
• Roof slope : 25-45 degree*
• Weight 27.5 kg/sq.m
Lumber
StarterTile
width × length × thickness (cm)
: 80 × 40 × 0.6
Weight 3.5 kg/tile
Application amount 1.25 tile/m (eave)
Grain
StarterTile
width × length × thickness (cm)
: 80 × 40 × 0.6
Weight 3.5 kg/tile
Application amount 1.25 tile/m (eave)
MainTile
width × length × thickness (cm)
: 80 × 51 × 0.6
Weight 4.4 kg/tile
Application amount 6.25 tile/sq.m
MainTile
width × length × thickness (cm)
: 80 × 51 × 0.6
Weight 4.4 kg/tile
Application amount 6.25 tile/sq.m
LUMBER Grain
Deep timber grain with cutting edge imitating natural wood, different dimension from naturally alternated wooden pattern.
Grain
Delicate wooden grain pattern, reiterate touch of wood,
natural look elegance, match with large roof panel
Hazel Brown
Golden Teak
Walnut Brown
The Perfect Fittings
Modern Look
Technical Information
• Batten space : First row 11 cm., next row 20 cm.
• Roof slope : 25-45 degree*
• Weight 27.5 kg/sq.m
StarterTile
width × length × thickness (cm)
: 80 × 51 × 0.6
Weight 4.4 kg/tile
Application amount 6.25 tile/sq.m
StarterTile
width × length × thickness (cm)
: 80 × 40 × 0.6
Weight 3.5 kg/tile
Application amount 1.25 tile/m (eave)
Modern Form Architecture,
In trend of the Novel and Modernization,
Perfect Style in all looks
Sandy Brown
Iron Grey
Marble Grey
The Perfect Fittings
ANOTHER CLASS OF TECHNOLOGY
WORLD CLASS PAINT COATING
First one In smooth type fiber cement roof. from Ayara Roof
This is high-qualified paint coating technology equivalent to the coating for automobile industry, and environmental friendly (with low amount of VOC of the paint color, in accordance to ASTM D3960-1 Standard).
CROSS LINK
Paint color matrix well blended and harmonized to the tile texture.
LONG LASTING
Enhance the protection for the paint color from sunshine in all climate circumstances.
SCRATCH RESISTANCE
Very high resistance for scratching from normal application.
EASY CLEAN
Ayaro Roof The with Z-TRON Shield, beautiful coloring, high durability, and long service life much more than normal paInt color. Elegancy maintain and Indicate your characteristic extensively.
Figure shows coating under TechnoIogy
‘VOC is an organic compound which can volatilize, If this compound accumulates in human body will result severe irritation, or the compound is harmful to environment.
The Perfect Quality
Durable, Impermeable, Leak-Proof
• SCG Ayara Roof is made from SCG Portland cement mixed with the synthetic fiber, which is safe and asbestos-free, blended together by modern technology. Tile texture then shall be very tough and durable with special ductility.
• Install the tile and cover using SCG Dry Ridge System set for SCG Araya Roof which is free of mortar. No more problem from dirty cement water stain.
• SCG Araya Roof, after roofing completely, can support personal point load of 180 kg safely. The roof can support several positions of such load simultaneously due to 3 layers of superimposing, which can assure load supporting.
Confident in Efficiency of Reverse Flow Prevention
• With design of intercepting valley in product, and appropriate installation and over-lapping methods, including the reliable testing methods carried out under Thailand’s standard circumstances (water, wind, and rain), these can ensure that the SCG Ayara roof with designated slope can definitely prevent reverse flow of rain water.
Light Weight, minimize structural cost and time
• Lighter weight can reduce building structure with large size of roof panel.
• Appropriate size of tile panel, reduce installation time.

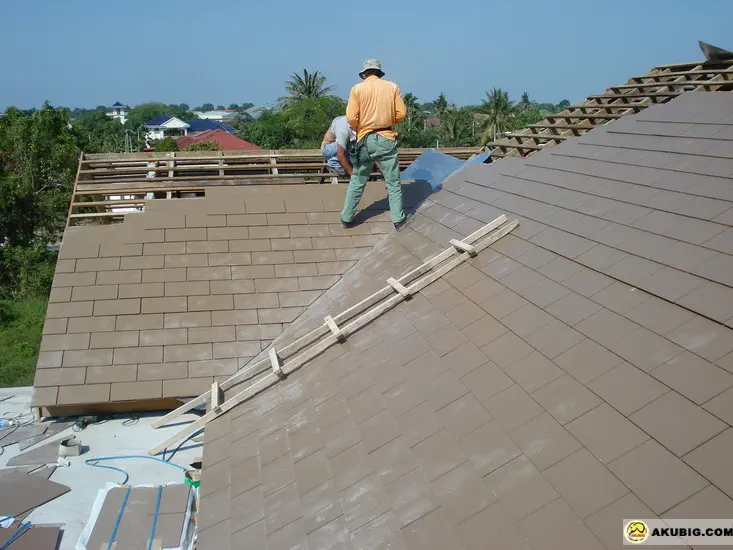

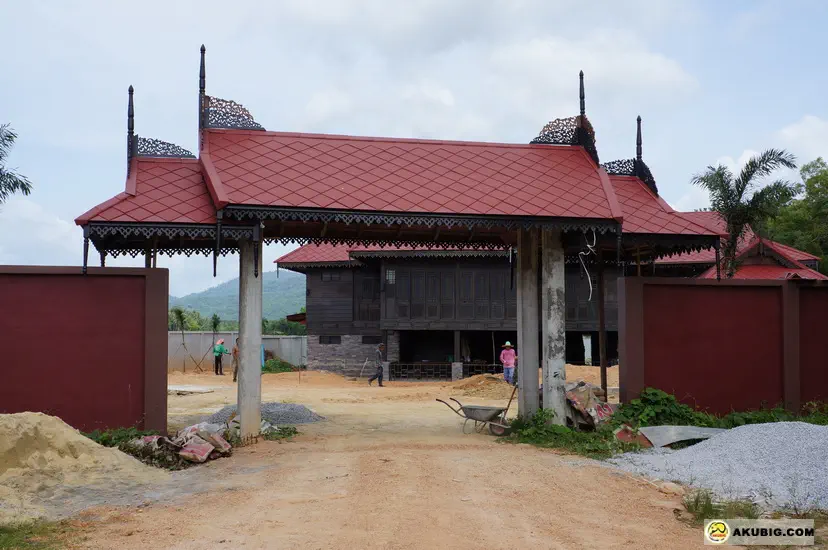

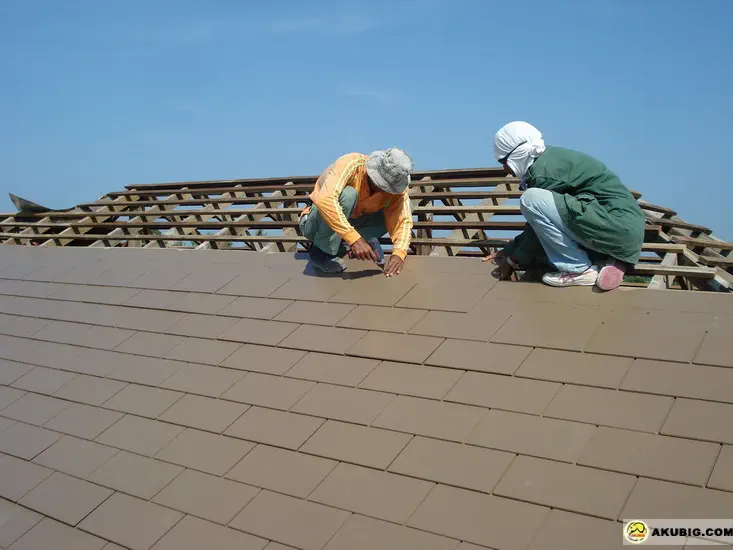

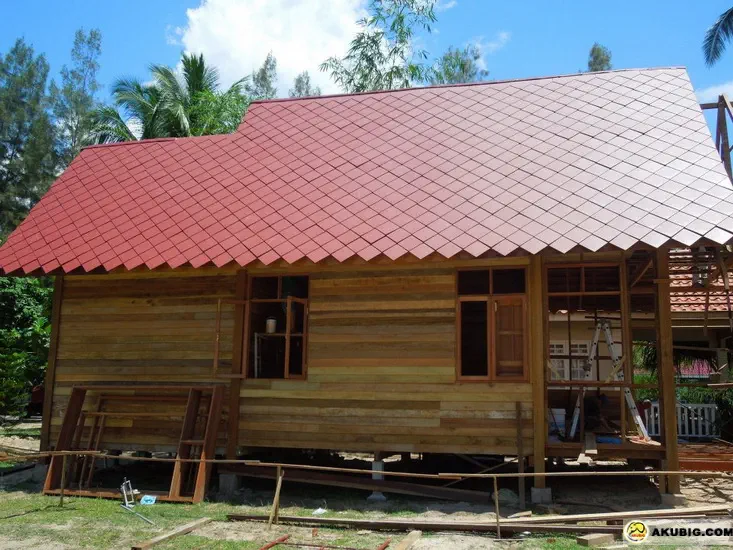

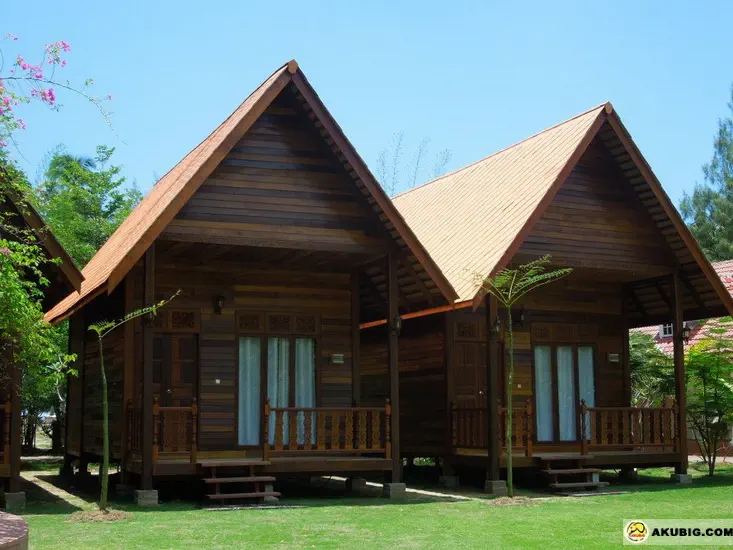

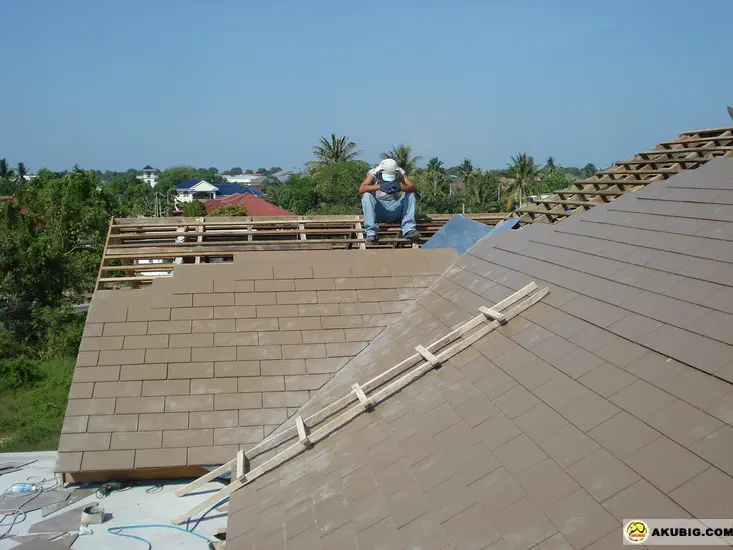

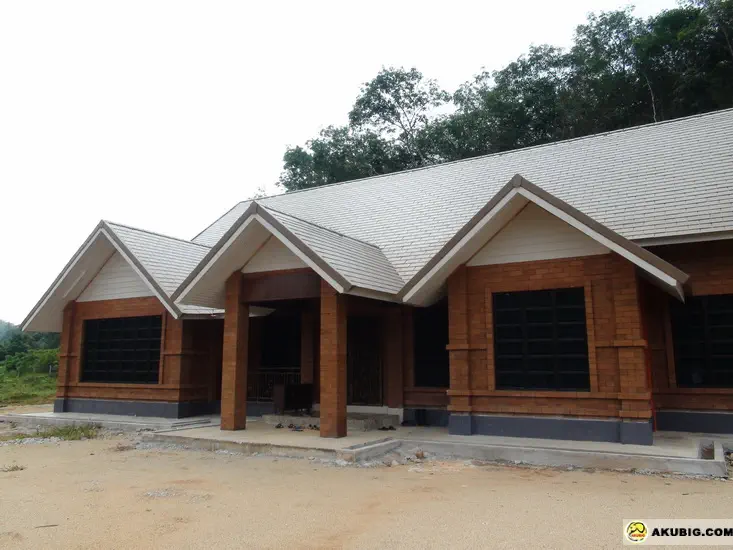

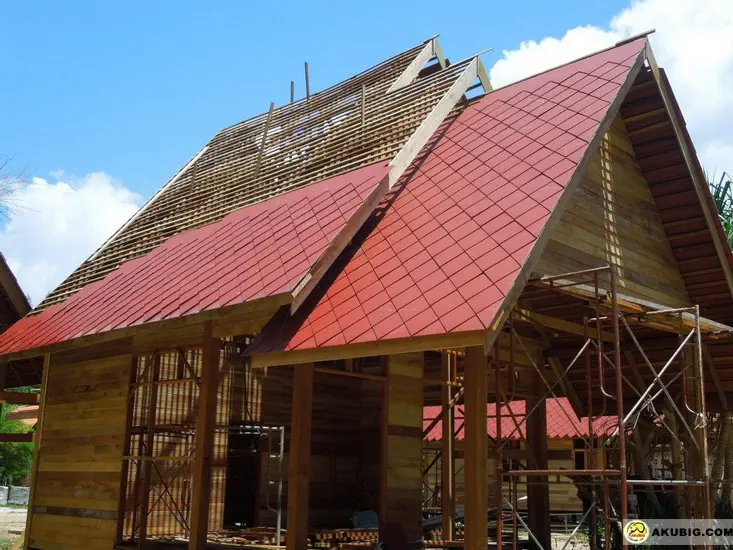

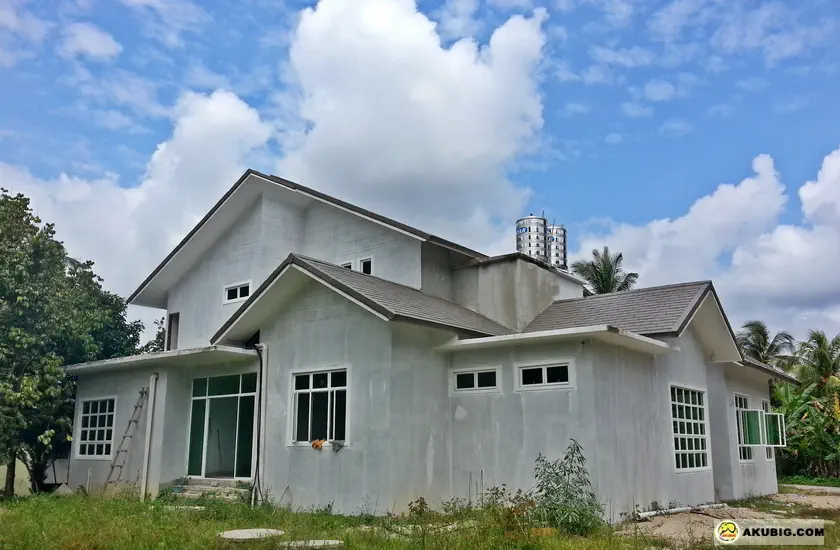

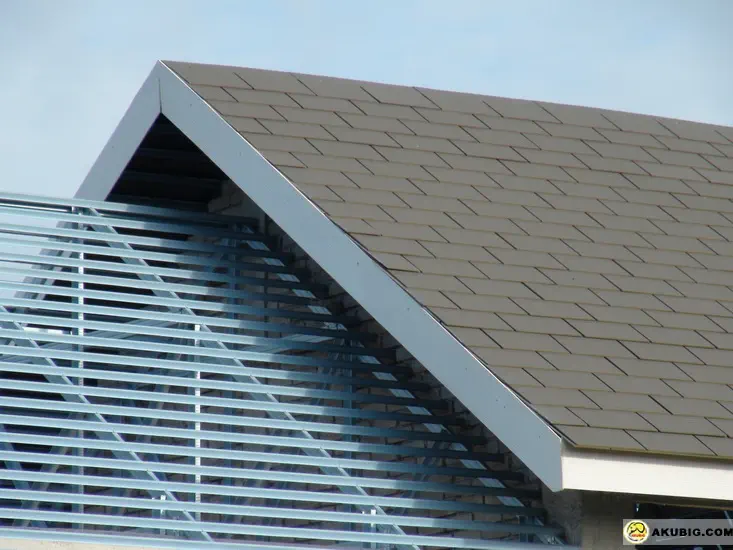

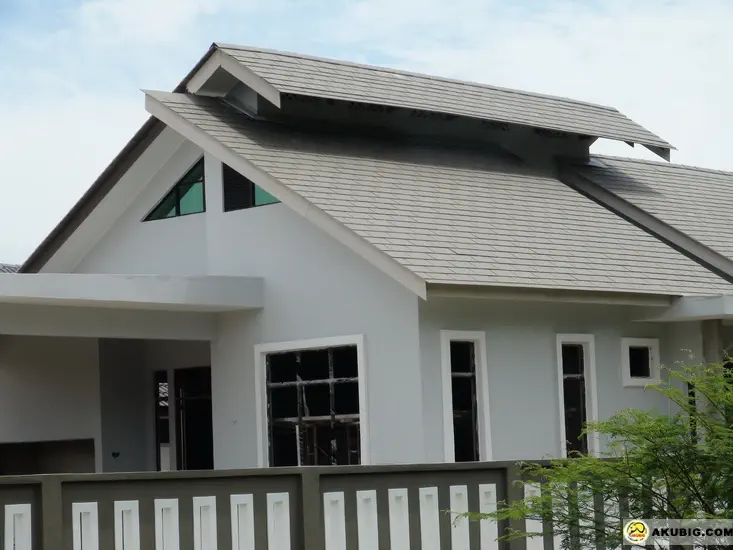

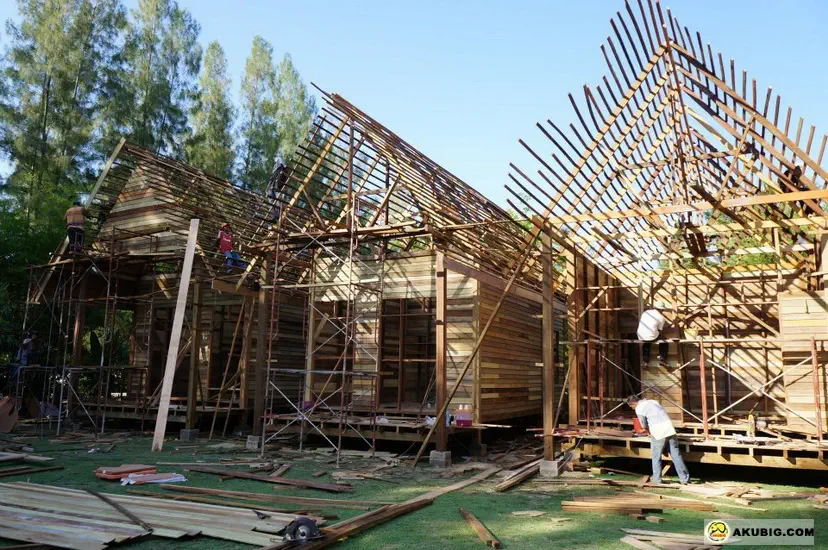

Gallery
Download Installation Manual
• Only used for residential roof or high rise building having the height from ground to roofing level not more than 23 metres. Products are advised to use with qualified equipment
from direct manufacture. Applications for other purposes are not recommended. • During working on the roof, PPE for high rise work and standard movement supporting
devices are highly required. ë Eating, intaking and inhaling of the dust that results from drilling, grinding, shearing, washing the materials are prohibited.
• Elephant Brand fiber cement roofing product are designed to use appropriately with construction nature in Thailand only. For using outside Thailand, architect, contractor and
installer must take responsibility.
• Installation manual is always updated. Architect, contractor and installer have to double check if existing version is the same as the most updated one or not. For sure, it can
be checked and verified by logging in to www.siamfibrecement.com
