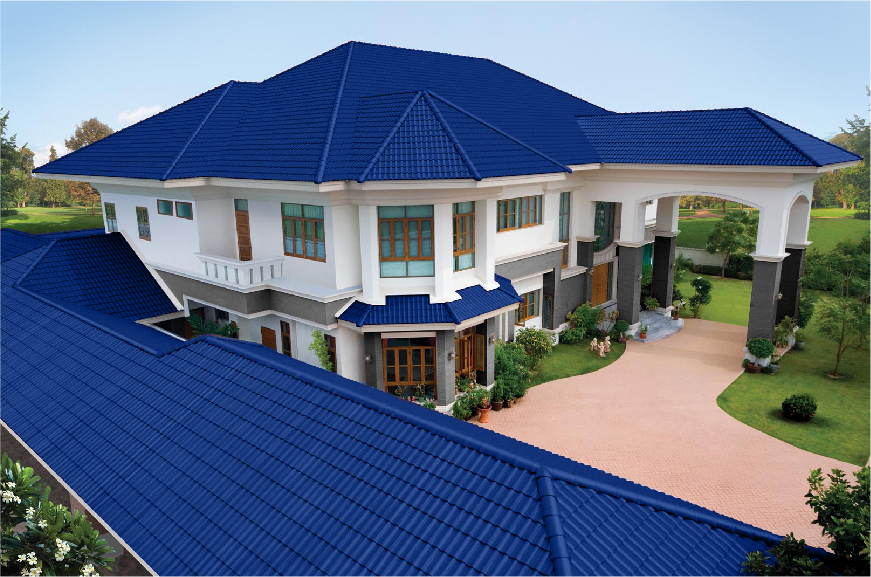

CLASSIC SERIES

Size (cm.) 33 x 42
Weight (kg./pc.) 3.5
Batten Guage (cm.) 32 – 34
Minimum Slope (Degree) 17
Number of Tile (pcs./sq.m.) 10

The exquisite curved pattern is contemporary and elegant, which makes a timeless statement and the finest finishing touches.

Color Collection

BLUE CORDIER

CRYSTAL BLUE

WHITE PEARL

GREEN PERIDOT

YELLOW SAPPHIRE

DIAMOND GREY

TIMBER BROWN

RED SAPPHIRE

RED GARNET

CARNELIAN BROWN

OBSIDIAN GREY

GREEN JADEITE

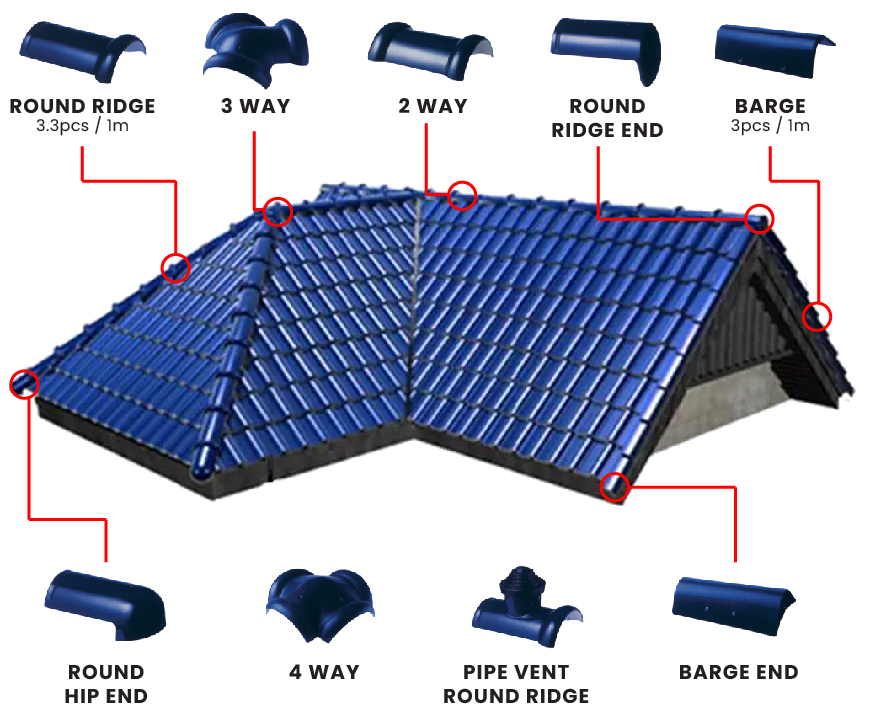

Ridge Collection

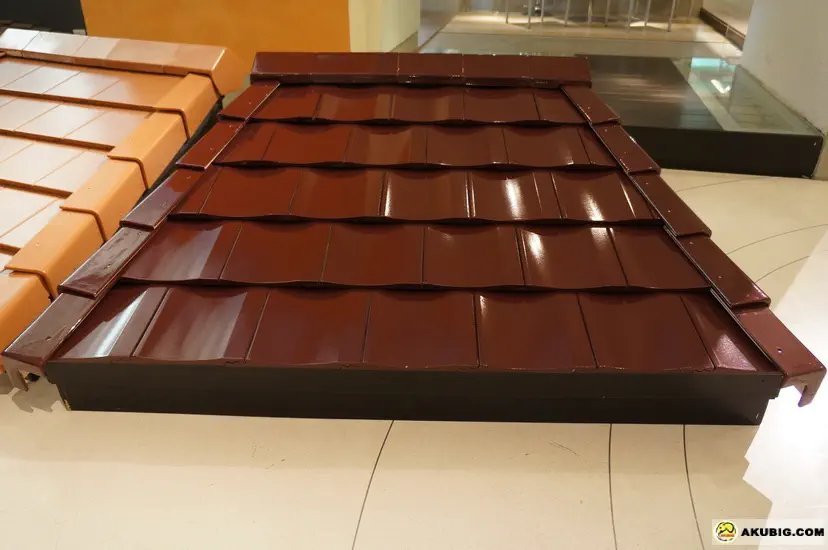

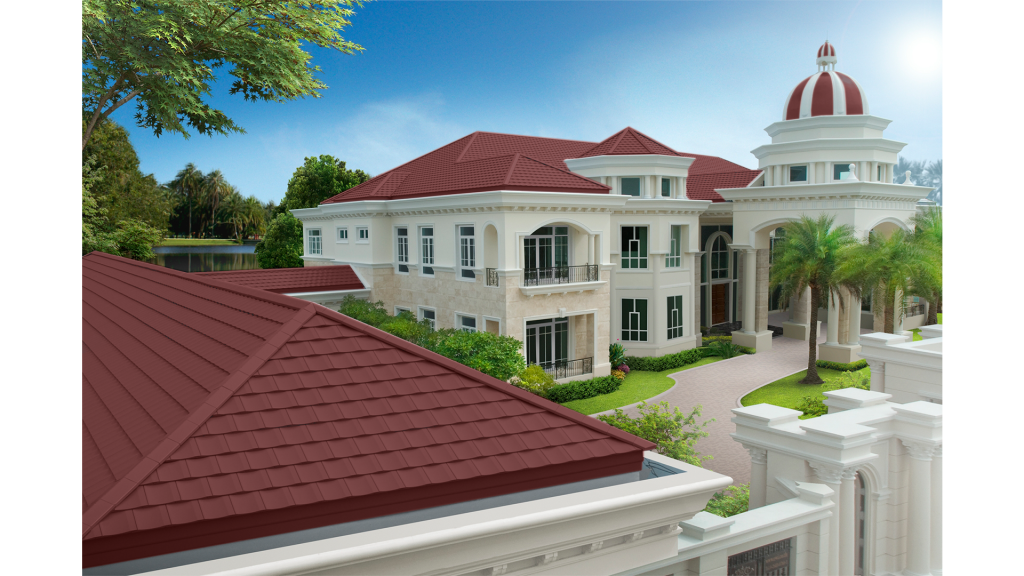

GRACE SERIES

Size (cm.) 34.5 x 42
Weight (kg./pc.) 3.7
Batten Guage (cm.) 32.5 – 33.5
Minimum Slope (Degree) 25-40
Number of Tile (pcs./sq.m.) 10.5

The unique and luxurious design offers a refined roof tile that is universally appealing and distinctive.

Color Collection

NAVY BLUE

BURGUNDY

OBSIDIAN GREY

SUNRISE

IONIC

EVERGREEN

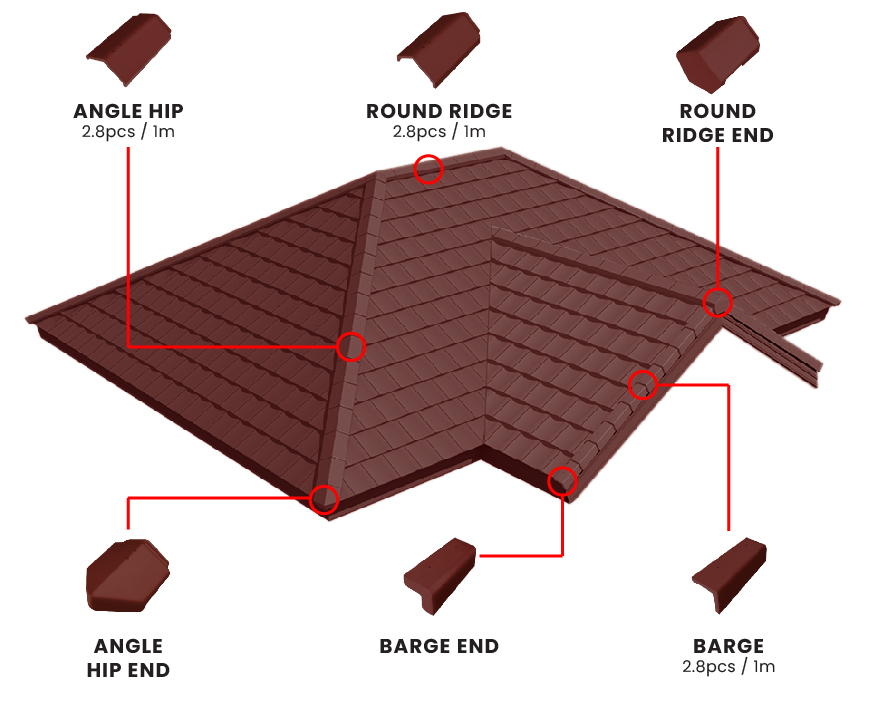

Ridge Collection

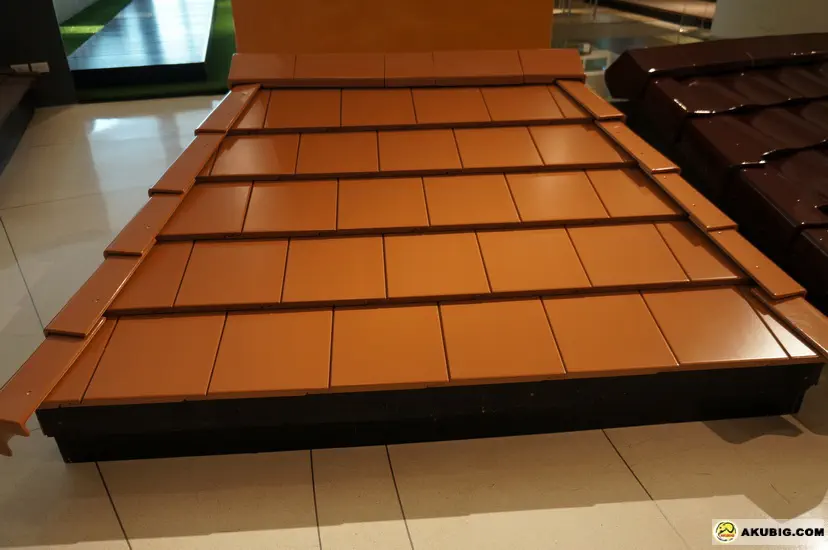

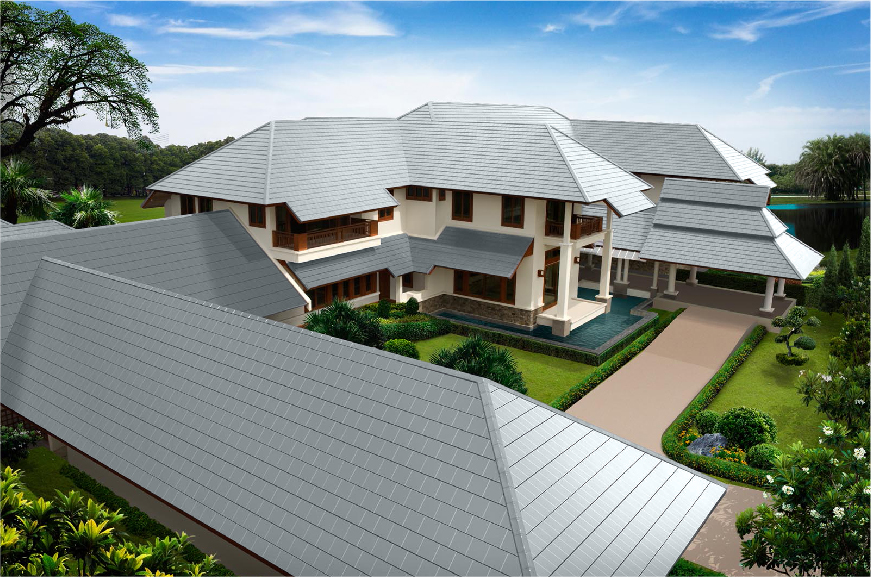

MODERN SERIES

Size (cm.) 33.5 x 42
Weight (kg./pc.) 3.8
Batten Guage (cm.) 32 – 34
Minimum Slope (Degree) 25-40
Number of Tile (pcs./sq.m.) 10.5

Eye-catching flat tiles, merged with their smoothness, result in a truly modern that reflects the admirable simplicity.

Color Collection

COCO BROWN

SILVER GREY

PLATINUM

OBSIDIAN GREY

COPPER BROWN

OLIVE GREEN

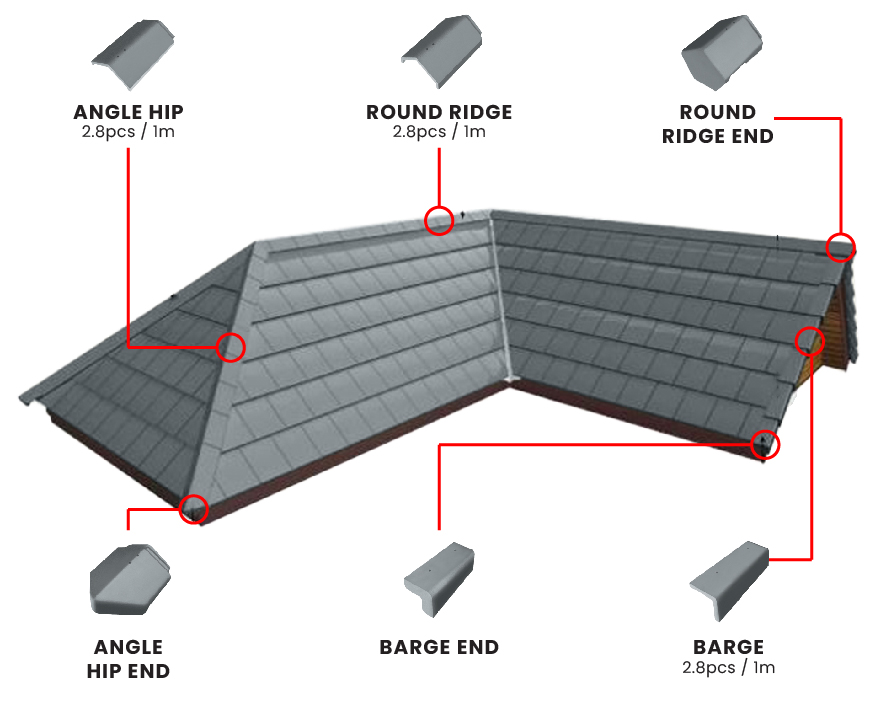

Ridge Collection

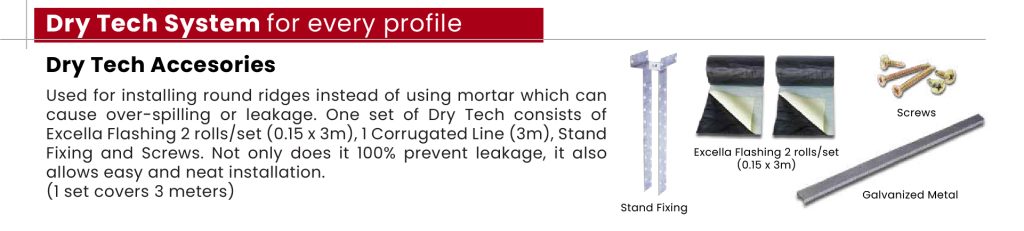

Dry Tech System for every profile

Dry Tech Accessories
Used for installing round ridges instead of using mortar which can cause over-spilling or leakage. One set of Dry Tech consists of Excella Flashing 2 rolls/set (0.15x3m.), 1 Com.igated Line (3m.) Stand Fbclng and Screws. Not only does it 100% prevent leakage, it also allows easy and neat installation. (1 set covers 3 meters)

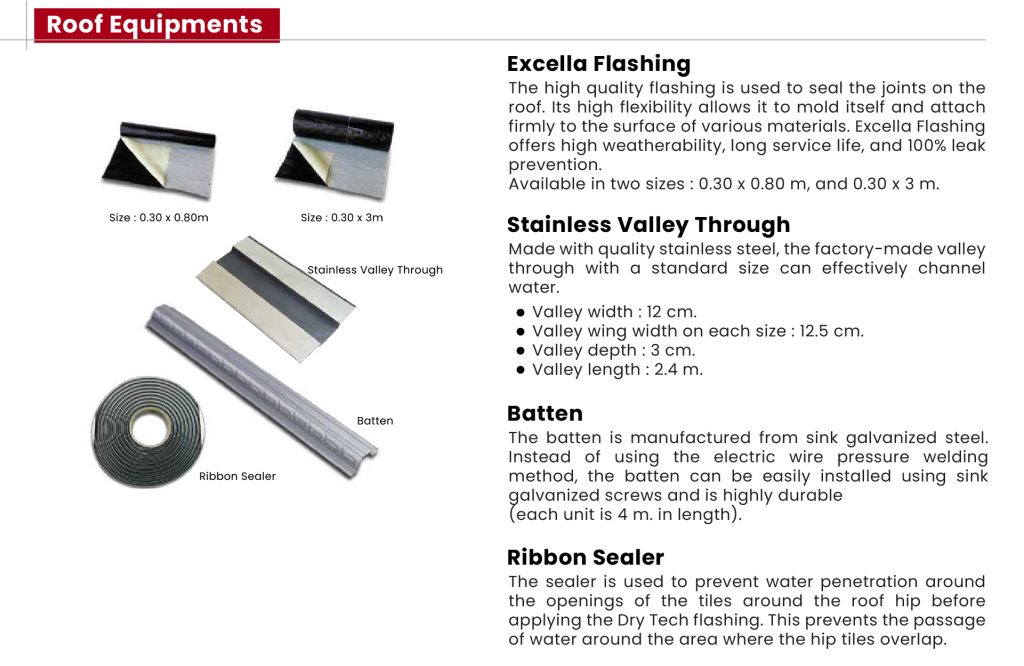

Roof Equipments

Excella Flashing
The high quality flashing is used to seal the joints on the roof. Its high flexibility allows it to mold Itself and attach firmly to the surface of various materials. Excella Flashing offers high weatherability, long service life, and 100% leak prevention. Available In two sizes: 0.30×0.80m. and 0.30x3m.

Stainless Valley Through
Made with quality stainless steel, the factoyrnade vailey through with a standard
size can effectively channel water
Valleywidth:l2cm. Valleydepth:3cm.
Valley wing width on each size: 12.5cm. Valley length: 2.4m.

Batten
The batten is manufactured from sink galvanizes steel. Instead of using the electric wire pressure welding method, the batten can be easily Installed using sink galvanized screws and is highly durable (each unit Is 4m. In length).

Ribbon Sealer
The sealer Is used to prevent water penetration around the openings of the tiles around the roof hip before applying the Dry Tech flashing. This prevents the passage of water around the area where the hip tiles overlap.

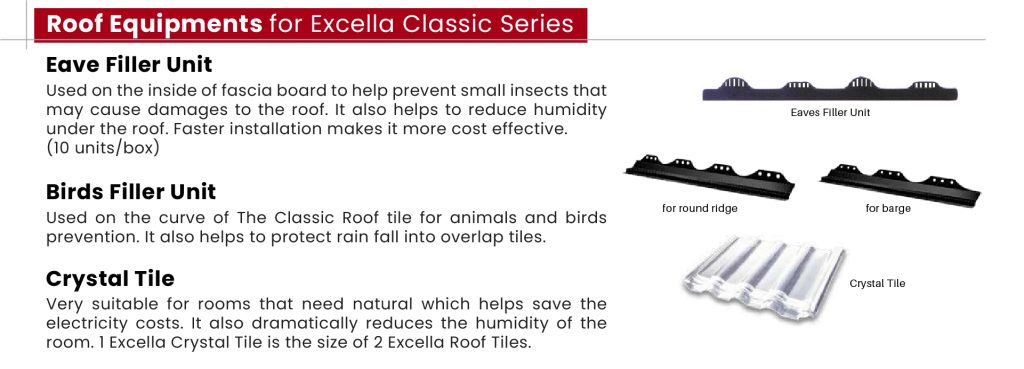

Roof Equipments for Excella Classic Series

Eaves Filler Unit
Used on the inside of fascia board to help prevent small insects that may cause damages to the roof. it also helps to reduce humidity under the roof. Faster installation makes it more cost effective. (10 units/box)

Birds Filler Unit
Used on the curve of The Classic Roof tile for animals and birds prevention. It also helps to protect rain fall into overlap tiles.

Crystal Tile
Very suitable for rooms that need natural which helps save the electricity costs. It also dramatically reduces the humidity of the room. 1 Excella Crystal Tile Is the size of 2 Excella Roof Tiles.

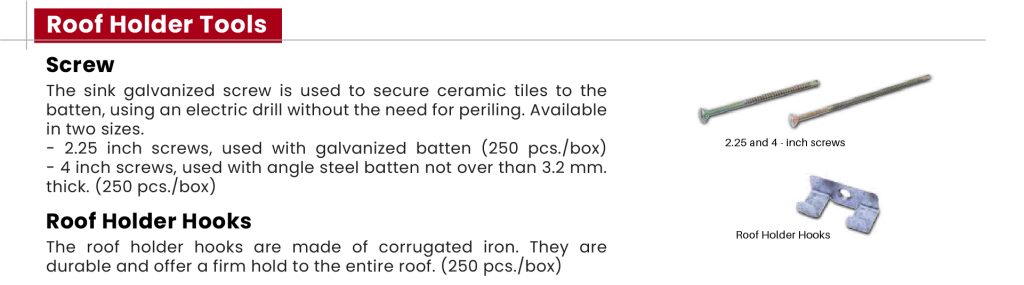

Roof Holder Tools

Screw
The sink galvanized screw is used to secure ceramic tiles to the batten, using an electric drill without the need for periling. Available in two sizes.
– 2.25 inch screws, used with galvanized batten (250 pcs/box)
-4 Inch screws, used with angie steel batten not over than 3.2 mm. thick. (250 pcs/box)

Roof Holder Hooks
The roof holder hooks are made of corrugated iron. They are durable and offer a firm hold to the entire roof. (250 pcs/box)

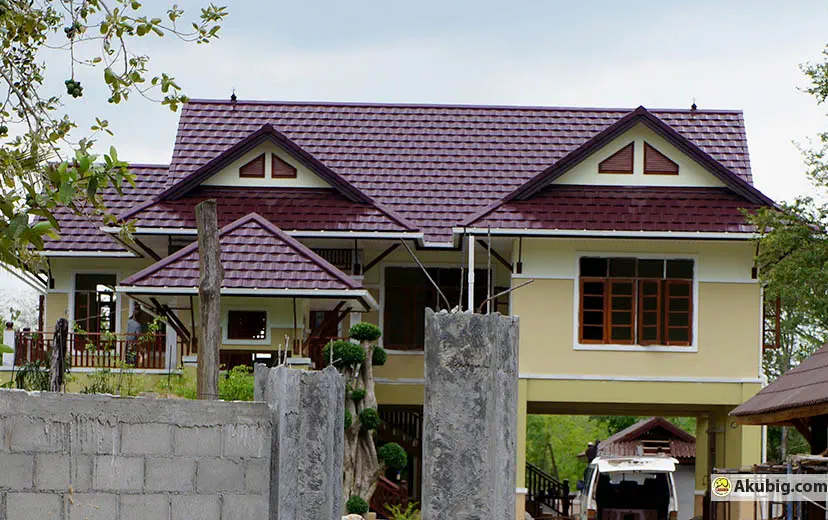

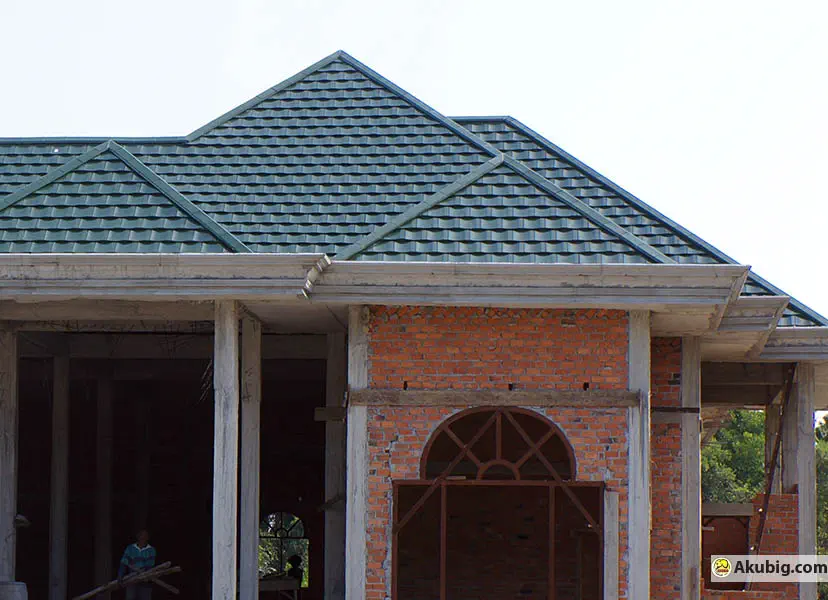

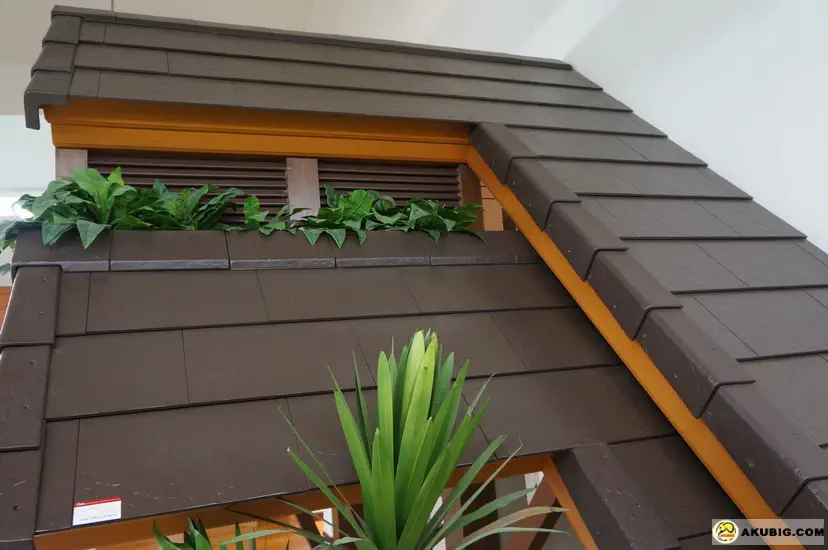

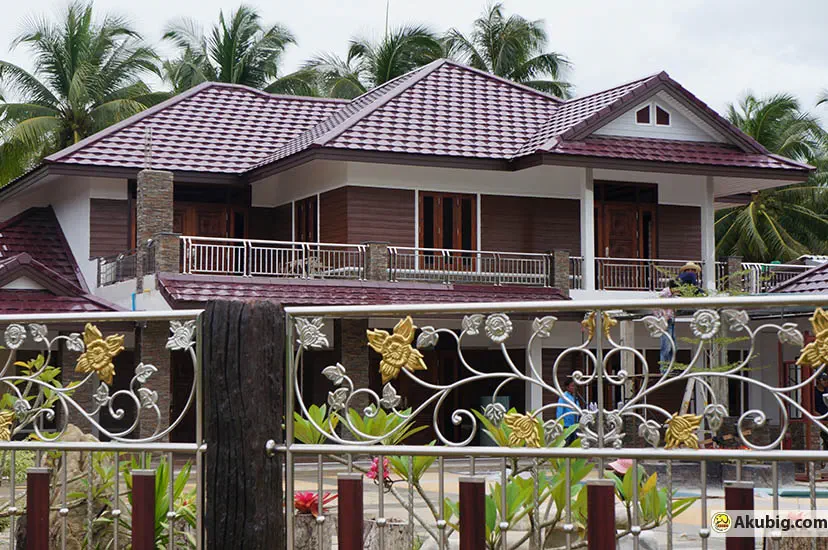

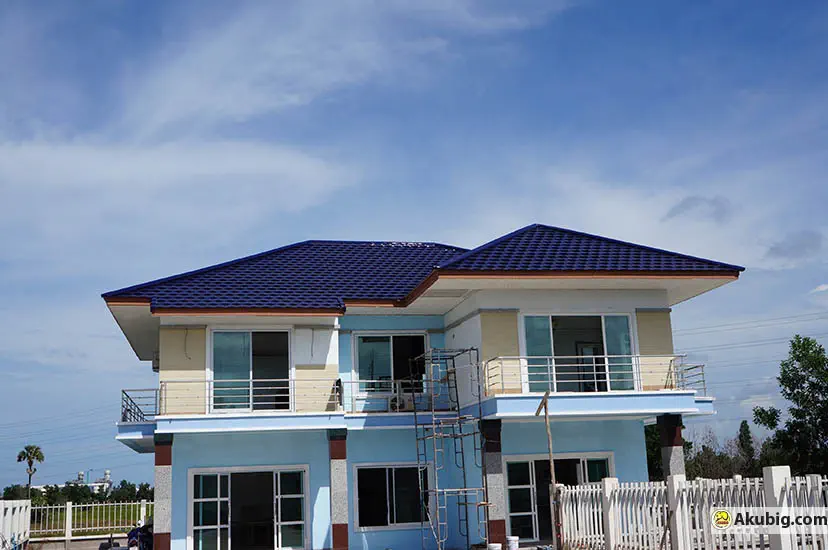

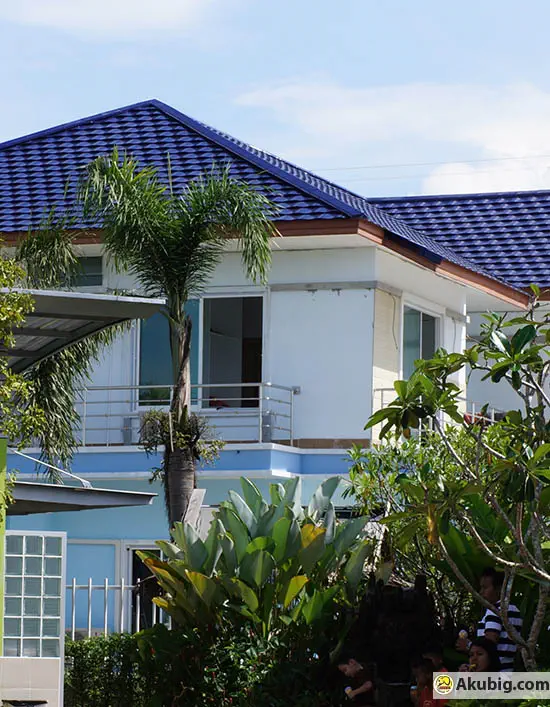

Gallery


• Durfrig woking on the roof. PPE for high rise work and standard movement supporting devices are highly required.
•The Instaltation shall follow the “lnstallatlon Manual” and use only the standard equipments made by producer.


• During inspection, It is important to watch out for sharp tiles which may cause injuries.


• Durfrig woking on the roof. PPE for high rise work and standard movement supporting devices are highly required.
•The Instaltation shall follow the “lnstallatlon Manual” and use only the standard equipments made by producer.
